MACHINING

Schurman Machine, Inc. is a full service machine shop with large machining capabilities. We have the ability to provide services ranging from the latest CNC machining and turning technology, to large Vertical, Horizontal, Boring, and Grinding capabilities. Our machine shop has the ability to react quickly and accurately to your needs whether it is close tolerance components or large machined assemblies.

We have the equipment and skilled operators to provide the highest quality service. Below, you will find a list of equipment and machinery we have in our 28,000 square foot facility. If you have any questions about any of our machines or what our capacities are, please call or e-mail us with your project details. Contact Us

CNC MACHINES

Nomura HBA-135P-R5

  • 118″ x 90″ x 55″
  • Table Size 71″ x 79″
  • Load Capacity: 33,000 lbs.

Nomura HB-110T-R3

  • 78″ x 60″ x 55″
  • Full 4th-Axis
  • Table size 55″ x 63″
  • Load Capacity 15,400 lbs

Chevalier CNC VTL

  • 78.7″ Dia. x 53″ High
  • Table Dia. 63”
  • Speed: 250 RPM
  • Load Capacity 17,600 lbs

Mitsubishi MVR-35 5 face CNC Vertical Mill

  • 244″ x 137″ x 50″
  • 77,000 lbs Table Capacity
  • Right Angle Head with 5 Degree Indexing

Makino A99 HMC

  • 39″ x 43.3″ x 49.2″
  • Two Pallets @ 31″ Square
  • 12,000 RPM Spindle
  • Load Capacity 3,960 lbs

Toyoda CNC VMC

  • 96” x 31.9” x 29.9”
  • Load Capacity 6,600 lbs

Doosan Puma GT2600M CNC Lathe

  • 16.1″ Dia x 24″ Long
  • Max RPM: 5,000

MANUAL MACHINES

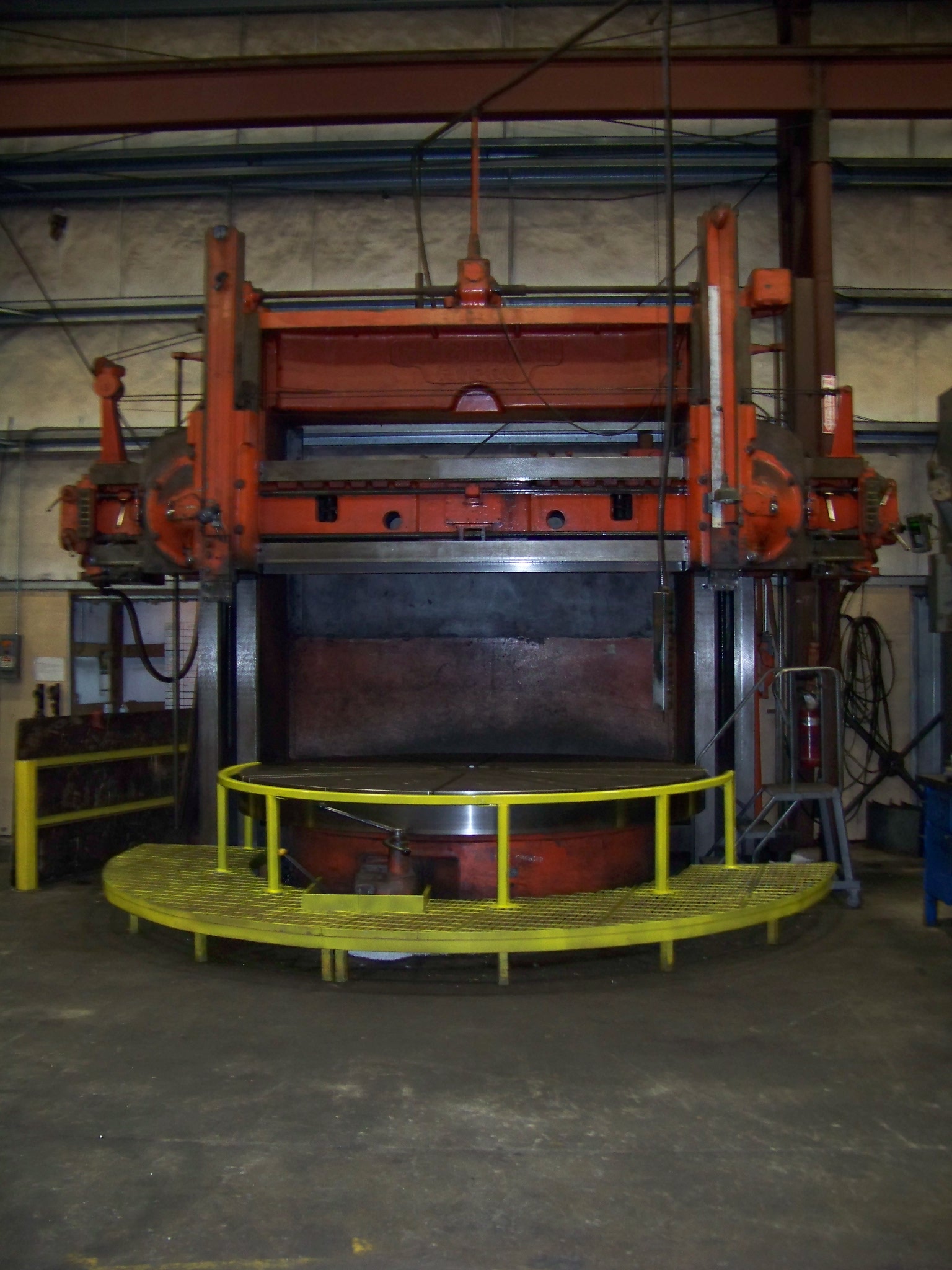

Vertical Boring Mills

  • 126″ Dia x 84″ Vertical

Horizontal Boring Mills

  • 6′ Horizontal x 5′ Vertical

Engine Lathes

  • 36″ Dia x 20′ Long

Surface Grinders

  • 18″ x 72″ Travel

OTHER EQUIPMENT

Misc.

  • Parts Cleaner/De-greaser
  • Internal Key Seating
  • Static Balancing
  • 10-Ton Crane Capacity
  • Painting Facilities
  • Crate/Box Building Facilities

MATERIALS WE MACHINE

  • Mild Steel
  • Stainless Steel
  • Aluminum
  • Brass
  • Bronze
  • Cast Iron
  • Titanium
  • Fiberglass

CUSTOMER SUPPORT

We support our shop with the latest CAD/CAM programming and engineering software.  This allows our CNC Programmers to take your full blown solids-based CAD file (or even a hand-drawn sketch) from concept to reality. To better support our customers needs, our software has been upgraded to directly import your CAD file in a variety of file formats such as IGES, PRT, MC8, DXF, DWG, ACIS, PDF etc.
